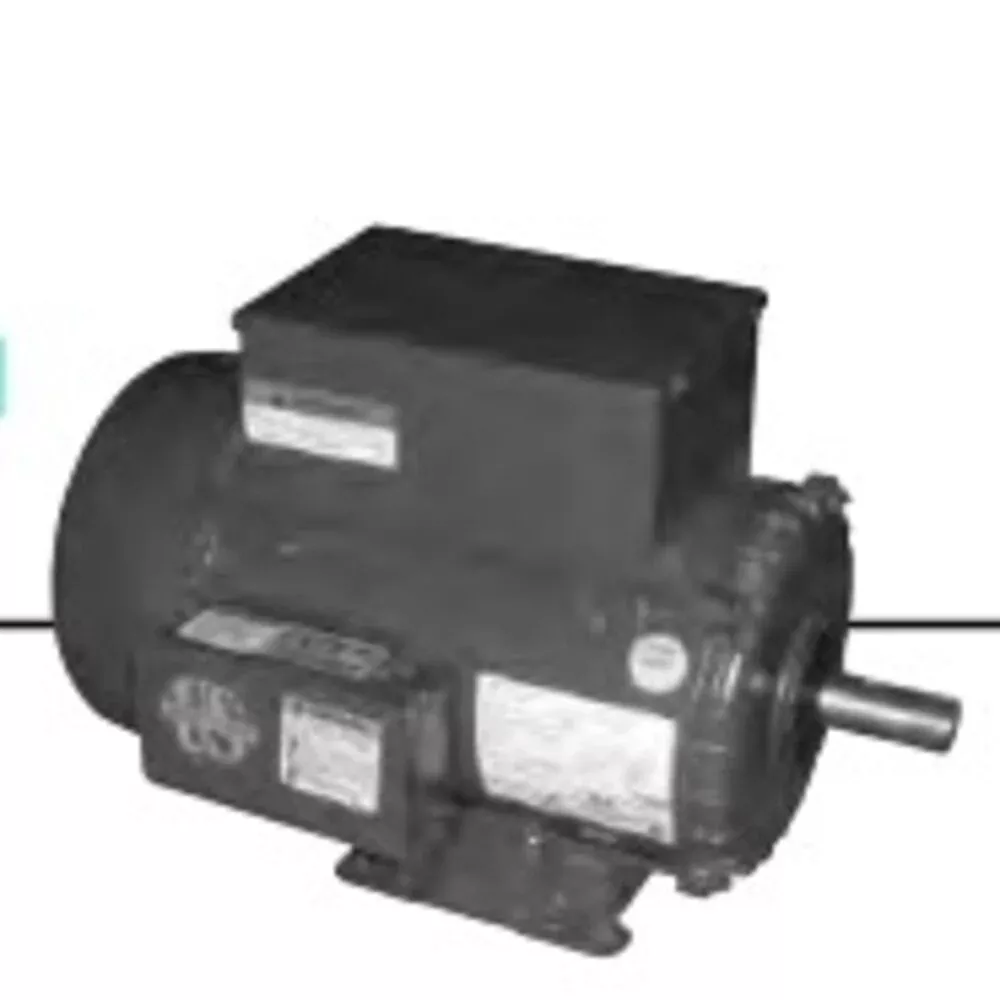

The U.S. Motors FD2CM2PHC is a general purpose single-phase motor designed for a variety of applications. It operates at two horsepower with a rated speed of eighteen hundred RPM. This motor is suitable for both commercial and residential use where reliable performance is required. The motor features a C-face mount and is housed in a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and efficiency in various environments.
- Single-phase design for versatile applications
- Operates at two horsepower with eighteen hundred RPM
- TEFC enclosure for protection against dust and moisture
This motor is ideal for HVAC systems, pumps, and fans. With a voltage rating of 115/230, it provides flexibility in electrical connections. The continuous duty capability allows for consistent performance during extended operation.
- Insulation: F
- Duty: Continuous Duty
- Voltage Rating: 115/230
- Motor Application: General Purpose
- Mounting: C-Face
- Enclosure: TEFC
- Full Load Amps: 18.9/9.4
- Hz: 60 Hz
- Thermal Protection: Manual Reset
- Frame: 145TC
- Full Load Efficiency: 81.5 %
- Enclosure Designation: TEFC – Totally Enclosed Fan Cooled
- RPM: 1800 rpm
- Service Factor: 1.15
- Phase: Single Phase
- Poles: 4
- Full Load rpm: 1725 rpm
- Weight: 32.0 LB
- EAN or UPC: 786382117832
